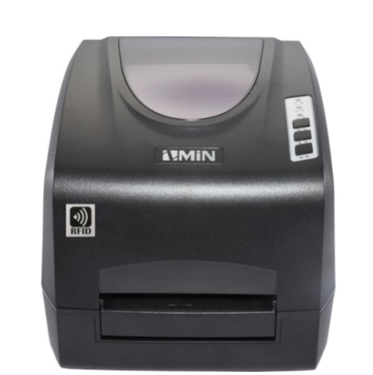

RFID / Barcode Thermal Printer
UHF Label Printer Specifications
| Model | X1D | X1iD |
| Printing method | Direct thermal & Thermal transfer | |
| Resolution | 203 DPI (8dots/mm) | 300 DPI(11.8dots/mm) |
| Maximum print speed | 8 IPS(203.2mm/s) | 6 IPS(152.4mm/s) |
| Maximum print width | 4.25″(108mm) | 4.15″ (105.6mm) |
| Maximum print length | 157.5″（4000mm） | 78.7″（2000mm） |
| Memory | 8 MB Flash ROM, 16 MB SDRAM | |
| Media | Roll-feed, die-cut, continuous, fan-fold, tags, tickets in plain paper or thermal paper Width：4.6″（118mm） max.,0.8″（20mm）min. Supply roll: OD 5″(127mm) max., ID 1″(25.4mm) min. Thickness: 0.06～1.5mm(0.002″～0.06″), including liner, support flexible on-metal tag. |
|
| Ribbon | Wax, Wax/Resin, Resin Ribbon roll: OD 2.75″(70mm) max. with ID 1″(25.4mm) core or ID 0.5″(12.7mm) core Max width: 110mm; Max length: 300M |
|
| Media sensor | Adjustable reflective & Transmissive | |
| RFID function | Integrated high performance RFID reader/encoder supports tags compatible with UHF EPC Gen 2/ISO 18000-6c. | |
| Bar Code Types | 1D Barcode : Code 39，Code 93，Code 128，Codabar，EAN-8/13/128，Interleave 2 of 5，UCC-128，UPC A/E 2 and 5 add-on, etc. 2D Barcode : Data Matrix, MaxiCode, PDF417,QR, etc. |
|
| Interfaces | RS-232, USB 2.0, LAN | |
| Power rating | 24 VDC, 2.0 A | |
| Weight | 2.62KGS | |
| Dimensions | W208 x D310 x H195 mm | |
| Operation environment |
Temperature: 32° F ~ +104° F (0° C ~ 40° C) Relative humidity: 5% - 85% non condensing |
|
| Storage environment | Temperature: -40° F ~ +140° F (-40° C ~ 60° C) Relative humidity: 5% - 85% non condensing |
|
| Options | peeler. | |
HF Label Printer Specifications
| Model | X1C | X1iC |
| Printing method | Direct thermal & Thermal transfer | |
| Resolution | 203 DPI (8dots/mm) | 300 DPI(11.8dots/mm) |
| Maximum print speed | 8 IPS(203.2mm/s) | 6 IPS(152.4mm/s) |
| Maximum print width | 4.25″(108mm) | 4.15″ (105.6mm) |
| Maximum print length | 157.5″（4000mm） | 78.7″（2000mm） |
| Memory | 8 MB Flash ROM, 16 MB SDRAM | |
| Media | Roll-feed, die-cut, continuous, fan-fold, tags, tickets in plain paper or thermal paper Width：4.6″（118mm） max.,0.8″（20mm）min. Supply roll: OD 5″(127mm) max., ID 1″(25.4mm) min. Thickness: 0.06～0.5mm(0.002″～0.02″), including liner |
|
| Ribbon | Wax, Wax/Resin, Resin Ribbon roll: OD 2.75″(70mm) max. with ID 1″(25.4mm) core or ID 0.5″(12.7mm) core Max width: 110mm; Max length: 300M |
|
| Media sensor | Adjustable reflective & Transmissive | |
| RFID function | Support ISO/IEC 15693/14443A/NFC protocol, can write ASCII code, hexadecimal, NDEF format text or URL address, support tag encryption and locking. | |
| Bar Code Types | 1D Barcode : Code 39，Code 93，Code 128，Codabar，EAN-8/13/128，Interleave 2 of 5，UCC-128，UPC A/E 2 and 5 add-on, etc. 2D Barcode : Data Matrix, MaxiCode, PDF417,QR, etc. |
|
| Interfaces | RS-232, USB 2.0, LAN | |
| Power rating | 24 VDC, 2.0 A | |
| Weight | 2.62KGS | |
| Dimensions | W208 x D310 x H195 mm | |
| Operation environment |
Temperature: 32° F ~ +104° F (0° C ~ 40° C) Relative humidity: 5% - 85% non condensing |
|
| Storage environment | Temperature: -40° F ~ +140° F (-40° C ~ 60° C) Relative humidity: 5% - 85% non condensing |
|
| Options | peeler. | |
